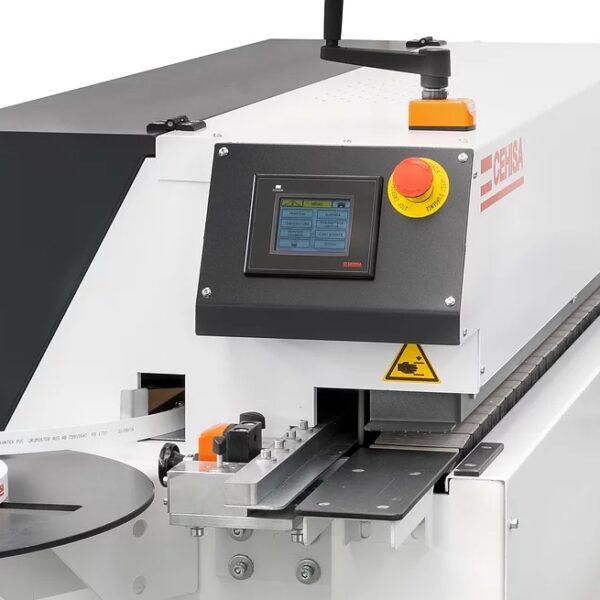

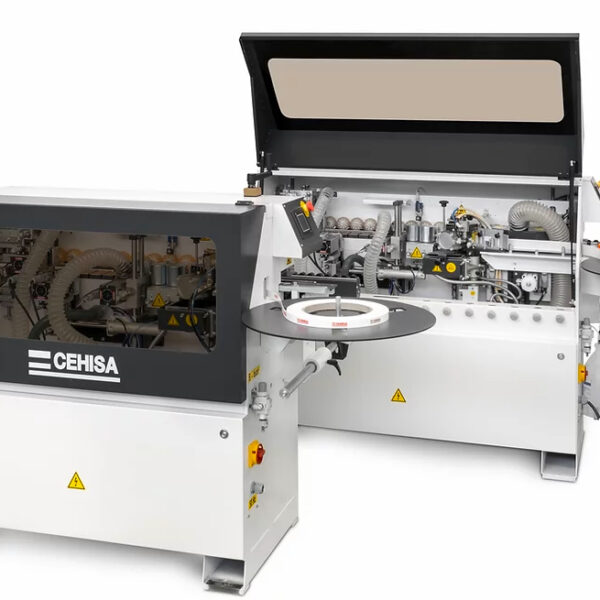

Cehisa Optim P Edge Bander
Cehisa Optim P Edge Bander. The Cehisa Optim P Edge Bander is an amazing space-saving machine. The most compact-sized industrial edge bander machine on the market. Don’t let the size fool you. This is one High performance machine that’s built to last. It even has a single phase option. Ideal edge bander for maximizing productivity using minimal space.
Optim Series Edge Banders
The Optim Series consists of the Optim P and Optim edge banders. Both are compact in class, high performance and are amazing space-saving machines
Optim P Technical Specifications
EDGE BANDING MATERIAL
- Melamine/PVC/ABS/PP/veneer 0,4 – 2 mm (3 mm Opt.)
- Thickness, min-max 8 – 50 mm
- Length, min-max 200 – unlimited mm
- Width min-max 75 – unlimited mm
- Working speed, m/min 5,5
- Pre-milling cutters height, mm 30 / 50
- Working air pressure, kg/cm² 6 – 7
- Total electrical output, kW 3,4
- Electrical connection, V/Hz 3 x 380 / 50
- Dimensions installed, mm 2352x1190x1444
- Net weight, Kg 620
OPTIM Series is equipped with an industrial chain with non-stick rubber pads and prismatic guides in the pressure beam.
Can be fitted with DUOMELT®, floating blades, pneumatic positioning ON/OFF in glue scraper and anti-adherent agent spray at entrance
*Single phase version available*
