5 In One Combined Operation Machine Rojek

5 In One Combined Operation Machine Rojek

5 In One Combined Operation Machine Rojek KPSN 300A. The 5 In One Combined Operation Machine Rojek KPSN 300A is a fantastic multipurpose machine. Imagine owning a good strong industrial standard multi-function machine. Think of the money you will save with a machine that can be used like five different separate machines. One of the major benefits of a combined operation machine is the amount of space you will save. This 5 in 1 wood working machine can be used as a Panel Saw, Ripsaw, Tilting Spindle Moulder, Tenoner, Surface Straightening Planer and Thicknesser. The Panel saw is available with various lengths of sliding table, scoring unit standard. This is the one machine for all your operations. The 5 In One Combined Operation Machine Rojek KPSN 300A is part of the Rojek Euro 9 series. The Euro 9 series consists of the Rojek KPFN 300A, the Rojek KPSN 300A and the Rojek KPSN 400A. WS Wood Machinery is a main supplier of the Rojek Euro 9 series. Click on the add to quote to enquire about the 5 In One Combined Operation Machine Rojek KPSN 300A or any of the other Rojek Euro 9 series machines.



Terms And Conditions Of Sale



Add to quote
Categories: , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , ,

Description

5 In One Combined Operation Machine Rojek

5 In One Combined Operation Machine Rojek KPSN 300A. The 5 In One Combined Operation Machine Rojek KPSN 300A is a fantastic multipurpose machine. Imagine owning a good strong industrial standard multi-function machine. Think of the money you will save with a machine that can be used like five different separate machines. One of the major benefits of a combined operation machine is the amount of space you will save. This 5 in one wood working machine can be used as a Panel Saw, Ripsaw, Tilting Spindle Moulder, Tenoner, Surface Straightening Planer and Thicknesser. The Panel saw is available with various lengths of sliding table, scoring unit standard





5 In One Combined Operation Machine Rojek KPSN 300A

This is the one machine for all your operations. The 5 In One Combined Operation Machine Rojek KPSN 300A is part of the Rojek Euro 9 series. The Euro 9 series consists of the Rojek KPFN 300A, the Rojek KPSN 300A and the Rojek KPSN 400A. WS Wood Machinery is a main supplier of the Rojek Euro 9 series. Click on the add to quote to enquire about the 5 In One Combined Operation Machine Rojek KPSN 300A or any of the other Rojek Euro 9 series machines.





5 in One Combined Operation Machine



KPSN 300A EURO 9 – Technical data

Saw
Motor power 3,7(4,4)kW/3x400V (2,2 kW/1x230V)
Motor speeds 2 865/min.(3 438/min.[60Hz])
Max. saw blade diameter with scoring unit Ø 315 mm
Spindle diameter 30 mm (5/8″ | 1″)
Speed of main saw blade spindle 3 755/min.
Max. depth of cut with scoring unit 100 mm (70 mm [45°])
Saw blade tilting 0° ÷ 45°
Max. width of cut 800 mm

Scoring unit
Motor power of scoring unit 0,5 kW
Saw blade diameter Ø 120 mm
Spindle diameter Ø 20 mm (3/4″)
Speed (drive with separate motor) 8 530/min.(10 236/min.[60Hz])

Spindle moulder
Motor power 3,7(4,4)kW/3x400V (2,2 kW/1x230V)
Motor speeds 2 865/min.(3 438/min.[60Hz])
Spindle diameter Ø 30 (32 | 35 | 40 | 50) mm (1″; 5/4″; (5/4″& 3/4″)
Spindle speeds 2 500; 3 500; 6 000; 8 000; 10 000/min.
Max. spindle stroke 140 mm
Spindle length 130 (110) mm
Max. diameter of table opening Ø 220 mm
Max. tool diameter under the table Ø 175 mm
Max. tool diameter above the table Ø 200 / 250 mm
Spindle tilting -45° ÷ +5°

Combined planer and thicknesser
Motor power 3,7(4,4)kW/3x400V (2,2 kW/1x230V)
Motor speeds 2 865/min.(3 438/min.[60Hz])
Diameter of cutter block 95 mm
Diameter of feeding rollers 40 mm
Number of cutters 4 (3)
Fence tilting 0° ÷ 45°
Speed of cutter block 4 200/min.
Max. planing width 310 mm
Max. thicknessing width 300 mm
Max. thicknessing height 230 mm
Max. stock removal thicknessing 5 mm
Max. stock removal planing 4 mm
Feeding speed 8 m/min.

Machine dimensions
Length (with CV360 – 2 000 mm) 2 520 mm
Length (with CV360 – 2 600 mm) 2 970 mm
texttd(659) 3 020 mm
Length (with CV360 – 3 200 mm) 3 390 mm
Width 3 155 mm
Table height 892 mm
Max. height of machine 1 300 mm
Table size Saw/Spindle moulder 1 314 x 479 mm
Table size – Planer 1 500 x 320 mm
Table size – Thicknesser 750 x 308 mm
Suction dust hood diameter 100 mm
Gross weight 770 kg
Nett weight 740 kg

Alu sliding table
Table size 2 000 (2 600 | 2 800 | 3 200) x 360 mm
Dimensions of supporting frame 1 240 x 650 mm
Length of cut 2 000 (2 600 | 2 800 | 3 200) mm

Other parameters
Voltage / frequency 3x400V (3x230V | 1x230V) / 50(60)Hz
Line safeguarding 16 A (25 A)
Noise level (without technology) 84,8 dB(A)
Noise level (with technology) 88,3 dB(A)
Acoustic achievement 81,5 dB(A)
Acoustic achievement (with technology) 103,4 dB(A)



Contact Us For Special Offers



London – 07867 950 153. ●Telford – 07951 462 834.



Glasgow – 01236 432 700. ● Manchester – 07909 290 209.



Main UK Distributor Of 5 In One Combined Operation Machine Rojek KPSN 300A



Try Our New Price Quote Challenge



Give us a call: We will do our best to beat any quote from our competitors on a like for like basis with all new and used woodworking machinery.



Telephone: 01236 432 700





5 in One Combined Operation Machine



W.S Wood Machinery is expanding its woodworking machinery business into Europe. Let us be your number 1 choice for a 5 In One Combined Operation Machine Rojek KPSN 300A. Our wide range of new and used woodworking machinery is available to be purchased and delivered throughout Europe, Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, England, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Scotland, Slovakia, Slovenia, Spain, Sweden and the UK.



You can visit our store on eBay by clicking here



Click here to download product brochure



Woodworking machinery trade-ins welcome. Reduce your costs.



We buy surplus damaged or faulty wood working machinery for spares and repairs.



We buy your surplus wood working machines. This is cost effective and helps to free up space.

Combined Operation Machine Rojek KPSN 300A

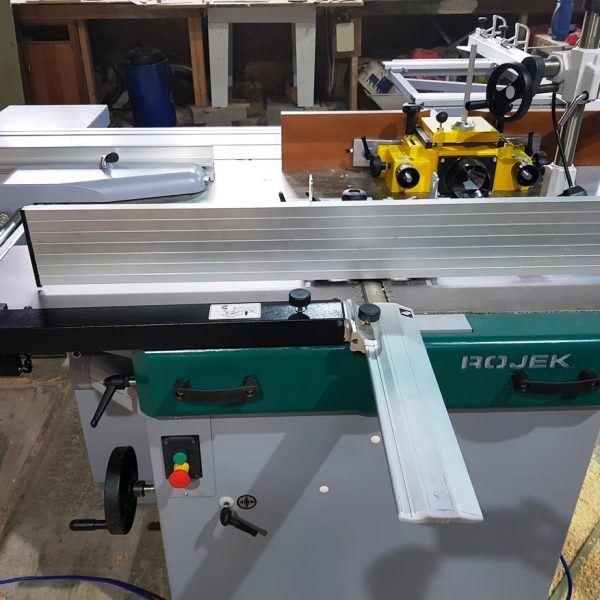

Recently installed machine for a client.

Combined Operation Machine Rojek KPSN 300A
